机器人辅助训练对脑卒中患者上肢运动功能效果的Meta分析

doi:10.3969/j.issn.1006-9771.2023.02.004

《中国康复理论与实践》 ›› 2023, Vol. 29 ›› Issue (2): 156-166.doi: 10.3969/j.issn.1006-9771.2023.02.004

机器人辅助训练对脑卒中患者上肢运动功能效果的Meta分析

张丽英¹^,², 王杰宁¹^,²(), 于小明²

1.上海中医药大学市七临床医学院，上海市 201210
2.上海市第七人民医院康复医学中心，上海市 200137

收稿日期:2022-07-15 修回日期:2022-11-08 出版日期:2023-02-25 发布日期:2023-03-16
通讯作者: 王杰宁 E-mail:sevenhos_yb@163.com
作者简介:张丽英(1997-)，女，汉族，福建邵武市人，硕士研究生，主要研究方向：中西医结合康复治疗。
基金资助:
上海市进一步加快中医药传承创新发展三年行动计划项目(2021年-2023年)No(ZY(2021-2023)-0104-01);浦东新区"国家中医药发展综合改革试验区"建设项目(PDZY-2019-0501)

Effect of robot-assisted training on upper limb motor in patients with stroke: a meta-analysis

ZHANG Liying¹^,², WANG Jiening¹^,²(), YU Xiaoming²

1. The Seventh Clinical School of Medicine, Shanghai University of Traditional Medicine, Shanghai 201210, China
2. Rehabilitation Medical Center, Shanghai Seventh People's Hospital, Shanghai 200137, China

Received:2022-07-15 Revised:2022-11-08 Published:2023-02-25 Online:2023-03-16
Contact: WANG Jiening E-mail:sevenhos_yb@163.com
Supported by:
Supported by Shanghai Further Accelerates the Three-Year Action Plan for the Inheritance, Innovation and Development of Traditional Chinese Medicine (2021-2023) No.(ZY(2021-2023)-0104-01);the Construction Project of "National Comprehensive Reform Pilot Zone for the Development of Traditional Chinese Medicine" in Pudong New Area No(PDZY-2019-0501)

摘要/Abstract

摘要：

目的系统评价机器人辅助训练对脑卒中患者上肢运动功能障碍的治疗效果。方法检索PubMed、Medline、Embase、Cochrane Library、Web of Science、中国知网、万方数据、中国生物医学文献数据库和维普数据库中关于机器人辅助训练对脑卒中患者上肢运动功能效果的文献，时限均为2019年7月1日至2022年7月1日。两名研究人员独立筛选文献并提取数据，评估方法学质量。使用Rev Man 5.4进行Meta分析。结果纳入19项随机对照试验，共1 258例受试者。试验组Fugl-Meyer评定量表上肢部分(SMD = 0.55, 95%CI 0.40~0.71, P < 0.001)、改良Bathel指数(MD = 7.55, 95%CI = 6.55~8.54, P < 0.001)、运动活动日志(SMD = -0.84, 95%CI -1.38~-0.31, P = 0.002)评分均明显优于对照组；两组间Brunnstrom分期上肢部分(SMD = 0.61, 95%CI -0.08~1.30, P = 0.08)和改良Ashworth量表(MD = -0.51, 95%CI -1.18~0.17, P = 0.14)评分均无显著性差异。结论机器人辅助训练对脑卒中患者的上肢运动功能有效。

关键词: 脑卒中, 机器人辅助训练, 上肢, 运动功能, Meta分析

Abstract: Objective To systematically review the efficacy of robot-assisted training on upper limb motor dysfunction in stroke patients. Methods Related literatures were searched in PubMed, Medline, Embase, Cochrane Library, Web of Science, CNKI, Wanfang Data, SinoMed, VIP data from July 1, 2019 to July 1, 2022. Two researchers screened the studies and extracted the data independently, and evaluated the methodological quality. Rev Man 5.4 was used for meta-analysis. Results A total of 19 randomised controlled trials with 1 258 subjects were finally included. The scores of Fugl-Meyer Assessment-Upper Extremity (SMD = 0.55, 95%CI 0.40 to 0.71, P < 0.001), modified Bathel Index (MD = 7.55, 95%CI 6.55 to 8.54, P < 0.001) and Motor Activity Log (SMD = -0.84, 95%CI -1.38 to -0.31, P = 0.002) were better in the experimental group than in the control group. However, no significant difference was found in the scores of Brunnstrom stages (upper extremity) (SMD = 0.61, 95%CI -0.08 to 1.30, P = 0.08) and modified Ashworth Scale (MD = -0.51, 95%CI -1.18 to 0.17, P = 0.14) between two groups. Conclusion Robot-assisted training could significantly improve the motor function of upper limbs in stroke patients.

Key words: stroke, robot-assisted training, upper exteremity, motor function, meta-analysis

中图分类号:

R743.3

张丽英, 王杰宁, 于小明. 机器人辅助训练对脑卒中患者上肢运动功能效果的Meta分析[J]. 《中国康复理论与实践》, 2023, 29(2): 156-166.

ZHANG Liying, WANG Jiening, YU Xiaoming. Effect of robot-assisted training on upper limb motor in patients with stroke: a meta-analysis[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2023, 29(2): 156-166.

图/表 11

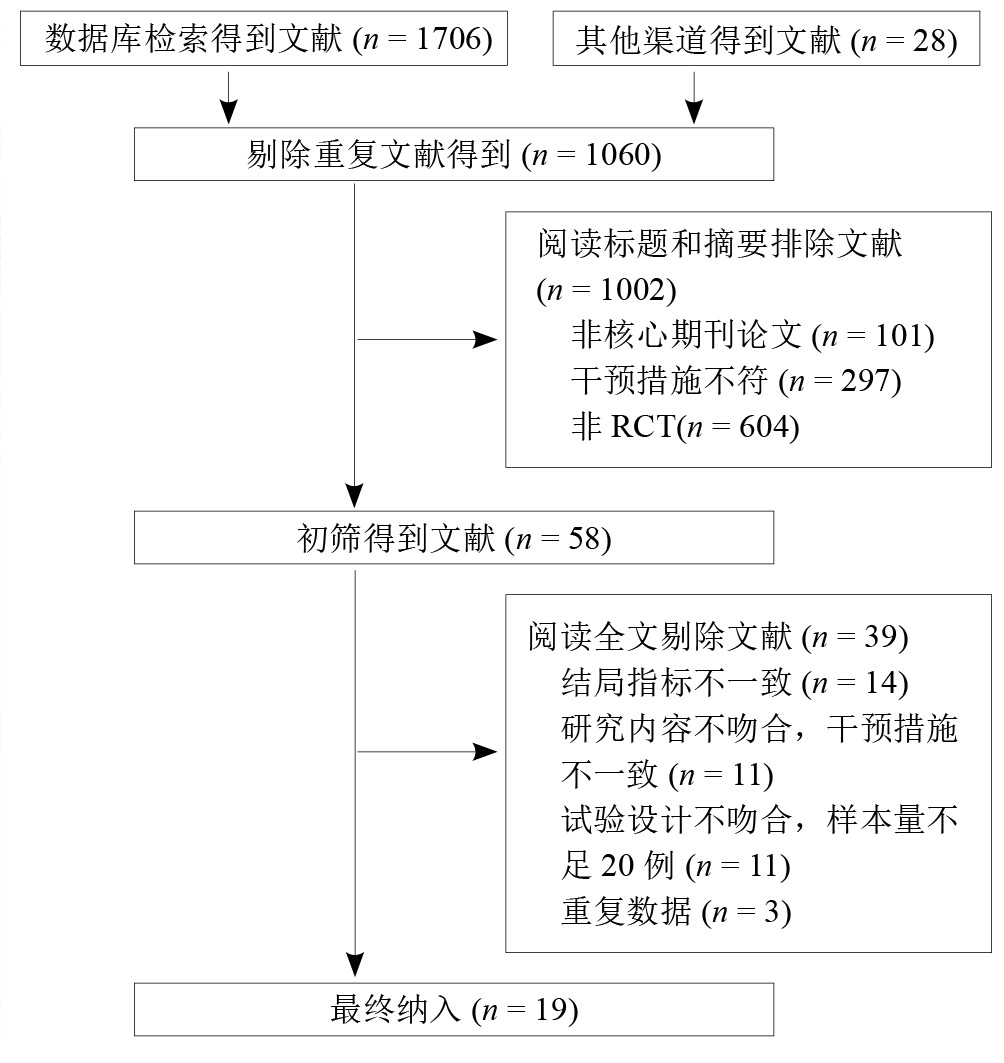

图1

表1

纳入文献的基本特征"

纳入研究	n(T/C)	年龄(T/C)/岁	病程(T/C)	干预频率	干预方式及病程	结局指标
Taravati等^[26](2022)	37(17/20)	(50.94±17.20)/(55.75±11.61)	(10.94±8.02)个月/ (12.65±8.42)个月	每天30~45 min，每周5 d，共4周	T：常规+机器人辅助训练 C：常规康复训练	①②④
Frisoli等^[27](2022)	22(11/11)	(62±12)/(70±11)	(30±20) d/(37±24) d	每次45 min，每周3次，共6周	T：机器人辅助训练 C：常规物理治疗	①
苏丽丽等^[28](2022)	60(30/30)	(64.97±4.88)/(65.53±5.46)	(27.13±3.88) d/ (26.73±4.08) d	每次40 min，每天1次，每周5 d，共4周	T：作业治疗+机器人辅助训练 C：作业治疗+认知训练	①③
何艳等^[29](2021)	60(30/30)	(57.53±14.61)/(57.67±12.98)	(2.93±2.43)个月/ (2.33±1.69)个月	每次30 min，每天2次，每周5 d，共4周	T：常规+机器人辅助训练 C：常规康复训练	①③
Kim等^[30](2021)	47(23/24)	(57.17±15.12)/(62.08±12.42)		每次40 min,每天1次，每周5 d，共4周	T：作业治疗+机器人辅助训练 C：作业治疗	①③④
Chinembiri等^[31](2021)	45(20/25)	(57.25±9.23)/(57.72±7.37)		每次70 min，每天1次，每周5 d，共6周	T：常规+机器人辅助训练 C：常规康复治疗	①③
Franceschini等^[32](2020)	48(25/23)	70.0(60.3,72.0)/74.0(68.3,80.3)	31.0 (28.0, 33.0) d/ 31.0 (29.0, 33.0) d	每次45 min，每天1次，每周5 d，共6周	T：机器人辅助治疗 C：物理治疗	①
Carpinella等^[33](2020)	38(19/19)	67.0(58.0~70.0)/59.0(46.0~69.0)	7.0 (1.7~11.9)个月/ 5.3 (1.9~89.6)个月	每次45 min，每周5次，共20次	T：机器人辅助治疗 C：物理治疗	①④
梅英春^[34](2020)	32(16/16)	(55.94±1.82)/(54.75±1.43)		每天3 h，每周5 d，共8周	T：运动康复+机器人辅助训练 C：运动康复	①②④
李宇淇^[35](2020)	40(20/20)	(49.9±14.2)/(49.45±11.69)	1(1,2)个月/ 1.5(1,3)个月	每次60 min，每天1次，每周7 d，共2周	T：常规+机器人辅助训练 C：常规康复训练	①②③④
姜荣荣等^[36](2020)	40(20/20)	(63.15±11.79)/(65.10±9.14)	(73.75±52.32) d/ (79.70±52.25) d	每次30 min，每天1次，每周6 d，共2周	T：机器人辅助训练 C：作业治疗+认知训练	①③⑤
顾琦等^[37](2020)	46(23/23)	(62.09±10.75)/(59.57±11.08)	(24.35±6.34) d/ (24.96±5.47) d	每次30 min/次，每天1次，每周5 d，共9周	T：常规+机器人辅助训练 C：常规康复训练	①③④
Rodgers等^[38](2019)	469(233/236)	(59.9±13.5)/(59.4±14.3)	233(102~549) d/ 258(115~546) d	每次45 min，每周3次，共12周	T：机器人辅助训练 C：上肢强化训练	①③
Ramos等^[39](2019)	28(16/12)	(49.3±12.5)/(50.3±12.2)		每次1 h，每天1次，每周5 d，共4周	T：机器人辅助训练 C：常规康复训练	①⑤
Hsu等^[40](2019)	43(22/21)	(53.1±13.9)/(52.6±12.5)	(13.7±8.6)周/ (14.7±13.2)周	每次50 min，每周3次，共4周	T：机器人辅助训练 C：常规康复护理	①⑤
Dehem等^[41](2019)	45(23/22)	(67.3±11.1)/(68.6±19.1)	(194.7±17.0) d/ (191.3±12.3) d	每次45 min，每天1次，每周4 d，共9周	T：机器人辅助训练 C：常规康复训练	①③
张杨^[42](2019)	28(14/14)	(55.07±12.56)/(56.00±11.11)		每次30 min，每天1次，每个疗程5 d，共3个疗程	T：常规+机器人辅助训练 C：常规康复训练	①②③
张海燕等^[43](2019)	40(20/20)	(54.00±12.45)/(56.50±11.62)	(31.20±18.14) d/(30.55±17.63) d	每天1次，每周6 d，共4周	T：常规+机器人辅助训练 C：常规康复训练	①
翁静等^[44](2019)	90(45/45)	(55.48±12.18)/(54.56±11.74)	(2.48±1.11)个月/(2.36±1.23)个月	每次30 min，每天1次，共6周	T：常规+机器人辅助训练 C：常规康复训练	①③

表1

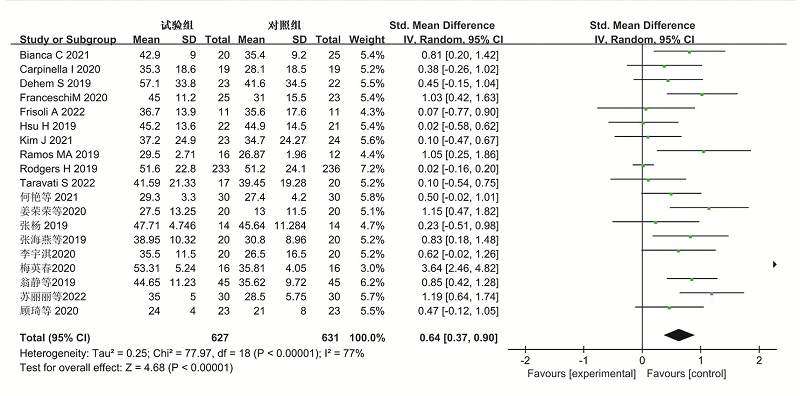

图2

图3

表2

图4

图5

图6

图7

图8

图9

参考文献 56

[1]	孙海欣, 王文志. 中国60万人群脑血管病流行病学抽样调查报告[J]. 中国现代神经疾病杂志, 2018, 18(2): 83-88.
	SUN H X, WANG W Z. A nationwide epidemiological sample survey on cerebrovascular disease in China[J]. Chin J Contem Neurol Neurosurgery, 2018, 18(2): 83-88.
[2]	王亚楠, 吴思缈, 刘鸣. 中国脑卒中15年变化趋势和特点[J]. 华西医学, 2021, 36(6): 803-807.
	WANG Y N, WU S M, LIU M. Temporal trends and characteristics of stroke in China in the past 15 years[J]. West Chin Med J, 2021, 36(6): 803-807.
[3]	HU S, CUI B, MLYNASH M, et al. Stroke epidemiology and stroke policies in China from 1980 to 2017: a systematic review and meta-analysis[J]. Int J Stroke, 2020, 15(1): 18-28. doi: 10.1177/1747493019873562 pmid: 31543073
[4]	XING L, JING L, TIAN Y, et al. Epidemiology of stroke in urban northeast China: a population-based study 2018-2019[J]. Int J Stroke, 2021, 16(1): 73-82. doi: 10.1177/1747493019897841
[5]	苏丽丽, 方小养, 林玲, 等. 上肢机器人训练对脑卒中偏瘫患者上肢功能影响的研究[J]. 数理医药学杂志, 2021, 34(6): 910-912.
	SU L L, FANG X Y, LIN L, et al. Study on the effect of upper limb robot training on upper-limb function in stroke patients with hemiplegia[J]. J Mathemat Med, 2021, 34(6): 910-912.
[6]	ZHANG M, CHEN J, LING Z, et al. Quantitative evaluation system of upper limb motor function of stroke patients based on desktop rehabilitation robot[J]. Sensors (Basel, Switzerland), 2022, 22(3): 1170. doi: 10.3390/s22031170
[7]	张大冬, 黄鹏鹏, 李翔鹏, 等. 上肢机器人训练对恢复期脑卒中患者上肢运动功能及日常生活活动能力的影响[J]. 生物医学工程与临床, 2021, 25(4): 459-464.
	ZHANG D D, HUANG P P, LI X P, et al. Effect of upper limb training robot on upper limb motor function and activities of daily living in patients with convalescent stroke[J]. Biomed Engineer Clin Med, 2021, 25(4): 459-464.
[8]	FONG J, CROCHER V, HADDARA R, et al. Effect of arm deweighting using end-effector based robotic devices on muscle activity[J]. Annu Int Conf IEEE Eng Med Biol Soc, 2018, 2018: 2470-2474. doi: 10.1109/EMBC.2018.8512773 pmid: 30440908
[9]	BERTANI R, MELEGARI C, DECOLA M C, et al. Effects of robot-assisted upper limb rehabilitation in stroke patients: a systematic review with meta-analysis[J]. Neurol Sci, 2017, 38(9): 1561-1569. doi: 10.1007/s10072-017-2995-5 pmid: 28540536
[10]	CHIEN W T, CHONG Y Y, TSE M K, et al. Robot-assisted therapy for upper-limb rehabilitation in subacute stroke patients: a systematic review and meta-analysis[J]. Brain Behav, 2020, 10(8): 1-16.
[11]	WU J Y, CHENG H, ZHANG J Q, et al. Robot-assisted therapy for upper extremity motor impairment after stroke: a systematic review and meta-analysis[J]. Phys Ther, 2021, 101(4): pzab010. doi: 10.1093/ptj/pzab010
[12]	钟迪, 张舒婷, 吴波. «中国急性缺血性脑卒中诊治指南2018»解读[J]. 中国现代神经疾病杂志, 2019, 19(11): 897-901.
	ZHONG D, ZHANG S T, WU B. Interpretation of "Chinese Guidelines for Diagnosis and Treatment of Acute Ischemic Stroke 2018"[J]. Chin J Contemp Neurol Neurosurg, 2019, 19(11): 897-901.
[13]	曾进胜, 蒲传强. 我国各类主要脑血管病诊断要点演变与更新[J]. 中华神经科杂志, 2019, 52(9): 681-683.
	ZENG J S, PU C Q. Evolution and update of diagnostic points of various major cerebrovascular diseases in my country[J]. Chin J Neurol, 2019, 52(9): 681-683.
[14]	TAUCHI Y, KYOUGKU M, TAKAHASHI K, et al. Dimensionality and item-difficulty hierarchy of the Fugl-Meyer Assessment of the upper extremity among Japanese patients who have experienced stroke[J]. Top Stroke Rehabil, 2022, 29(8): 579-587. doi: 10.1080/10749357.2021.1965797
[15]	HIJIKATA N, KAWAKAMI M, ISHII R, et al. Item difficulty of Fugl-Meyer Assessment for upper extremity in persons with chronic stroke with moderate-to-severe upper limb impairment[J]. Front Neurol, 2020, 11: 577855. doi: 10.3389/fneur.2020.577855
[16]	HUANG C, LIN G, HUANG Y, et al. Improving the utility of the Brunnstrom recovery stages in patients with stroke: validation and quantification[J]. Medicine (Baltimore), 2016, 95(31): e4508. doi: 10.1097/MD.0000000000004508
[17]	葛芳, 黄雯, 王月英. 基于Brunnstrom分期理论的中医康复护理方案对脑卒中后偏瘫肢体功能及生存质量的影响[J]. 现代实用医学, 2021, 33(11): 1518-1519.
	GE F, HUANG W, WANG Y Y. Influence of traditional Chinese medicine rehabilitation nursing program based on Brunnstrom staging theory on limb function and quality of life after stroke[J]. Modern Pract Med, 2021, 33(11): 1518-1519.
[18]	ZURAWSKI E, BEHM K, DUNLAP C, et al. Interrater reliability of the modified Ashworth Scale with standardized movement speeds: a pilot study[J]. Physiother Can, 2019, 71: 348-354. doi: 10.3138/ptc-2018-0086 pmid: 31762545
[19]	FREIRE B, BOCHEHIN V M, LANFERDINI F J, et al. Cut-off score of the modified Ashworth scale corresponding to walking ability and functional mobility in individuals with chronic stroke[J]. [ahead of print]. Disabil Rehabil, 2022. doi:10.1080/09638288.2022.2037753. doi: 10.1080/09638288.2022.2037753
[20]	LIU X, ZHOU M, ZHAO J, et al. Functional independence and disability evaluation in stroke patients: optimal cutoff scores for a Pictorial-Based Longshi Scale, Barthel Index, and Modified Rankin Scale[J]. Front Neurol, 2022, 13: 710852. doi: 10.3389/fneur.2022.710852
[21]	PARK J H, LEE N, CHO M, et al. Effects of mental practice on stroke patients' upper extremity function and daily activity performance[J]. J Phys Ther Sci, 2015, 27: 1075-1077. doi: 10.1589/jpts.27.1075 pmid: 25995560
[22]	DOS A S, MARK V W, RODRIGUEZ C M, et al. Reliability and validity of the Lower Extremity Motor Activity Log for measuring real-world leg use in adults with multiple sclerosis[J]. Arch Phys Med Rehabil, 2021, 102: 626-632. doi: 10.1016/j.apmr.2020.10.125
[23]	DELIOĞLU K, SEYHAN B K, UZUMCUGIL A, et al. "How Well" and "How Often" questions for birth brachial plexus injury: a validity and reliability of the pediatric upper extremity motor activity log-revised[J]. [ahead of print]. Disabil Rehabil, 2022. doi:10.1080/09638288.2022.2085333. doi: 10.1080/09638288.2022.2085333
[24]	ALBANESE E, BUTIKOFER L, ARMIJO-OLIVO S, et al. Construct validity of the Physiotherapy Evidence Database (PEDro) quality scale for randomized trials: item response theory and factor analyses[J]. Res Synth Methods, 2020, 11(2): 227-236. doi: 10.1002/jrsm.1385 pmid: 31733091
[25]	MOSELEY A M, RAHMAN P, WELLS G A, et al. Agreement between the Cochrane risk of bias tool and Physiotherapy Evidence Database (PEDro) scale: a meta-epidemiological study of randomized controlled trials of physical therapy interventions[J]. PLoS One, 2019, 14(9): 1-16.
[26]	TARAVATI S, CAPACI K, UZUMCUGIL H, et al. Evaluation of an upper limb robotic rehabilitation program on motor functions, quality of life, cognition, and emotional status in patients with stroke: a randomized controlled study[J]. Neurol Sci, 2022, 43: 1177-1188. doi: 10.1007/s10072-021-05431-8
[27]	FRISOLI A, BARSOTTI M, SOTGIU E, et al. A randomized clinical control study on the efficacy of three-dimensional upper limb robotic exoskeleton training in chronic stroke[J]. J Neuroeng Rehabil, 2022, 19(1): 14. doi: 10.1186/s12984-022-00991-y pmid: 35120546
[28]	苏丽丽, 方小养, 林玲, 等. 上肢康复机器人训练对亚急性脑卒中患者认知和上肢运动功能的效果[J]. 中国康复理论与实践, 2022, 28(5): 508-514.
	SU L L, FANG X Y, LIN L, et al. Effects of upper limb robot-assisted training on cognition and upper limb motor function for subacute stroke patients[J]. Chin J Rehabil Theory Pract, 2022, 28(5): 508-514.
[29]	何艳, 张通. 机器人辅助训练对脑卒中患者上肢功能的效果[J]. 中国康复理论与实践, 2021, 27(7): 797-801.
	HE Y, ZHANG T. Effect of robot-assisted training on upper-limb function for stroke patients[J]. Chin J Rehabil Theory Pract, 2021, 27(7): 797-801.
[30]	KIM J, MHWAN K, PARK J W, et al. Efficacy of electromechanically-assisted rehabilitation of upper limb function in post-stroke patients: a randomized controlled study[J]. J Rehabil Med Clin Commun, 2021, 4: 1000074.
[31]	CHINEMBIRI B, MING Z, KAI S, et al. The Fourier M2 robotic machine combined with occupational therapy on post-stroke upper limb function and independence-related quality of life: a randomized clinical trial[J]. Top Stroke Rehabil, 2021, 28(1): 1-18. doi: 10.1080/10749357.2020.1755815
[32]	FRANCESCHINI M, MAZZOLENI S, GOFFREDO M, et al. Upper limb robot-assisted rehabilitation versus physical therapy on subacute stroke patients: a follow-up study[J]. J Bodyw Mov Ther, 2020, 24(1): 194-198. doi: S1360-8592(19)30111-1 pmid: 31987544
[33]	CARPINELLA I, LENCIONI T, BOWMAN T, et al. Effects of robot therapy on upper body kinematics and arm function in persons post stroke: a pilot randomized controlled trial[J]. J Neuroeng Rehabil, 2020, 17(1): 1-19. doi: 10.1186/s12984-019-0634-5
[34]	梅英春. 上肢机器人配合运动康复训练对脑卒中偏瘫患者的康复效果观察[D]. 大连: 辽宁师范大学, 2020.
	MEI Y C. The effect of upper limb robot combined with exercise rehabilitation training on hemiplegia patients after stroke[D]. Dalian: Liaoning Normal University, 2020.
[35]	李宇淇. 上肢康复机器人结合常规上肢康复训练对脑卒中恢复期患者上肢功能的影响[D]. 广州: 南方医科大学, 2020.
	LI Y Q. Efficacy of upper limb robot-assisted therapy combined with routine upper limb rehabilitation training on upper limb function in subacute stroke patients[D]. Guangzhou: Southern Med Univ, 2020.
[36]	姜荣荣, 叶正茂, 陈艳, 等. 上肢康复机器人对偏瘫上肢运动功能和日常活动能力的影响[J]. 中国康复, 2020, 35(10):517-521.
	JIANG R R, YE Z M, CHEN Y, et al. Effect of robot-assisted training on motor function and activity ability of hemiplegic upper limb and the possible mechanism[J]. Chin J Rehabil, 2020, 35(10): 517-521.
[37]	顾琦, 田湉, 张芳芳, 等. 上肢康复机器人辅助治疗对改善脑卒中单侧忽略的疗效观察[J]. 中国康复医学杂志, 2020, 35(2): 166-170.
	GU Q, TIAN T, ZHANG F F, et al. Therapeutic effectiveness of upper limb rehabilitation robot-aided training on the unilateral neglect caused by stroke[J]. Chin J Rehabil Med, 2020, 35(2):166-170.
[38]	RODGERS H, BOSOMWORTH H, KREBS H I, et al. Robot assisted training for the upper limb after stroke (RATULS): a multicentre randomised controlled trial[J]. Lancet, 2019, 394(10192): 51-62. doi: S0140-6736(19)31055-4 pmid: 31128926
[39]	RAMOS M A, CURADO M R, BROETZ D, et al. Brain-machine interface in chronic stroke: randomized trial long-term follow-up[J]. Neurorehabil Neural Repair, 2019, 33(3): 188-198. doi: 10.1177/1545968319827573
[40]	HSU H, CHIU H Y, KUAN T S, et al. Robotic-assisted therapy with bilateral practice improves task and motor performance in the upper extremities of chronic stroke patients: a randomised controlled trial[J]. Aust Occup Ther J, 2019, 66(5): 637-647. doi: 10.1111/aot.v66.5
[41]	DEHEM S, GILLIAUX M, STOQUART G, et al. Effectiveness of upper-limb robotic-assisted therapy in the early rehabilitation phase after stroke: a single-blind, randomised, controlled trial[J]. Ann Phys Rehabil Med, 2019, 62: 313-320. doi: S1877-0657(19)30058-2 pmid: 31028900
[42]	张杨. 上肢康复机器人对脑卒中偏瘫患者上肢运动功能及日常生活活动能力的疗效观察[D]. 广州: 南方医科大学, 2019.
	ZHANG Y. Effects of upper limb rehabilitation robot for improving patients' upper limb function and daily activities after stroke[D]. Guangzhou: Southern Med Univ, 2019.
[43]	张海燕, 吴方超, 李建华, 等. 上肢康复机器人辅助训练对脑卒中患者上肢功能的影响[J]. 中国运动医学杂志, 2019, 38(10): 859-863.
	ZHANG H Y, WU F C, LI J H, et al. Effect of upper limb rehabilitation robot assisted training on upper limb function of stroke survivors[J]. Chin J Sports Med, 2019, 38(10): 859-863.
[44]	翁静, 王张迪, 张双琴. 上肢康复机器人辅助训练对恢复期脑卒中患者事件相关电位P300、上肢功能、生活质量的影响[J]. 中国基层医药, 2019, 26(12): 1463-1466.
	WENG J, WANG Z D, ZHANG S Q. Effects of robot-assisted training for upper limb rehabilitation on event-related potential P300, upper limb function and quality of life in convalescent stroke patients[J]. Chin J Primary Med Pharm, 2019, 26(12): 1463-1466.
[45]	周亮, 鲍春龄, 石程, 等. 东贵荣教授"阴阳调衡运动针法"诊治中风上肢瘫痪机制探析[J]. 中国医药导报, 2021, 18(34): 117-120, 134.
	ZHOU L, BAO C L, SHI C, et al. Study on the mechanism of Professor Dong Guirong's "balance of yin and yang movement acupuncture" in the diagnosis and treatment of upper limb paralysis after stroke[J]. Chin Med Herald, 2021, 18(34): 117-120, 134.
[46]	闫桂芳, 尹昱, 沈红梅, 等. 踏车运动对恢复期脑卒中患者步行能力的影响[J]. 中国康复医学杂志, 2007, 22(5): 435-436.
	YAN G F, YI Y, SHEN H M, et al. Effects of treadmill exercise on walking ability of stroke patients in recovery period[J]. Chin J Rehabil Med, 2007, 22(5): 435-436.
[47]	FONG J, CROCHER V, TAN Y, et al. Indirect robotic movement shaping through motor cost influence[J]. IEEE Int Conf Rehabil Robot, 2019, 2019: 977-982. doi: 10.1109/ICORR.2019.8779430 pmid: 31374756
[48]	JO H, CHOI W, LEE G, et al. Analysis of visuo motor control between dominant hand and non-dominant hand for effective human-robot collaboration[J]. Sensors (Basel), 2020, 20(21): undefined.
[49]	袁淑娟, 徐勇, 刘爱玲, 等. 上肢康复机器人训练对脑卒中注意力障碍病人生活自理能力的影响[J]. 中西医结合心脑血管病杂志, 2017, 15(15): 1924-1927.
	YUAN S J, XU Y, LIU A L, et al. Influence of upper limb rehabilitation robot training on self-care ability of stroke patients with attention disorder[J]. Chin J Integr Med Cardio-/Cerebrov Dis, 2017, 15(15): 1924-1927.
[50]	曹振东, 杨彩霞, 褚延利, 等. 上肢康复机器人治疗脑卒中患者上肢功能的临床疗效研究[J]. 中国疗养医学, 2022, 31(1): 68-70. doi: 10.13517/j.cnki.ccm.2022.01.019
	CAO Z D, YANG C X, CHU Y L, et al. Clinical effect of upper limb rehabilitation robot on upper limb function of stroke patients[J]. Chin J Conval Med, 2022, 31(1): 68-70.
[51]	WU J, YE W J, WANG Y W, et al. A general position control method for planar underactuated manipulators with second-order nonholonomic constraints[J]. IEEE Trans Cybern, 2021, 51: 4733-4742. doi: 10.1109/TCYB.2019.2951861
[52]	FONG J, CROCHER V I, TAN Y, et al. EMU: a transparent 3D robotic manipulandum for upper-limb rehabilitation[J]. IEEE Int Conf Rehabil Robot, 2017, 2017: 771-776. doi: 10.1109/ICORR.2017.8009341 pmid: 28813913
[53]	KLAIC M, FONG J, CROCHER V, et al. Application of the extended technology acceptance model to explore clinician likelihood to use robotics in rehabilitation[J]. [ahead of print]. Disabil Rehabil Assist Technol, 2022. doi:10.1080/17483107.2022.2060356. doi: 10.1080/17483107.2022.2060356
[54]	雷玉凤, 赵光标, 唐茂生. 任务导向性训练联合上肢机器人对脑卒中患者上肢功能康复的影响[J]. 医学理论与实践, 2021, 34(3): 515-517.
	LEI Y F, ZHAO G B, TANG M S. Effect of task-oriented training combined with upper limb robot on functional rehabilitation of upper limbs in stroke patients[J]. J Med Theory Prac, 2021, 34(3): 515-517.
[55]	杨等, 刘文辉, 王丛笑, 等. 上肢康复机器人辅助治疗在脑卒中偏瘫患者上肢功能康复中的应用[J]. 神经损伤与功能重建, 2019, 14(9): 447-449.
	YANG D, LIU W H, WANG C X, et al. Application of upper limb rehabilitation robot in rehabilitation of upper limb function in stroke patients with hemiplegia[J]. Neural Inj Funct Reconstr, 2019, 14(9): 447-449.
[56]	WAGNER T H, LO A C, PEDUZZI P, et al. An economic analysis of robot-assisted therapy for long-term upper-limb impairment after stroke[J]. Stroke, 2011, 42(9): 2630-2632. doi: 10.1161/STROKEAHA.110.606442 pmid: 21757677

纳入研究	①	②	③	④	⑥	⑦	⑧	⑨	⑩	⑪	总分
Taravati等^[26](2022)	√	√	√	√		√	√	√	√	√	8
Frisoli等^[27](2022)	√	√	√	√		√	√	√	√	√	8
苏丽丽等^[28](2022)	√	√	√	√			√	√	√	√	7
何艳等^[29](2021)	√	√	√	√			√	√	√	√	7
Kim等^[30](2021)	√	√	√	√		√	√	√	√	√	8
Chinembiri等^[31](2021)	√	√	√	√		√	√	√	√	√	8
Franceschini等^[32](2020)	√	√	√	√		√	√	√	√	√	8
Carpinella等^[33](2020)	√	√	√	√		√	√	√	√	√	8
梅英春^[34](2020)	√	√	√	√			√	√	√	√	7
李宇淇^[35](2020)	√	√	√	√			√	√	√	√	7
姜荣荣等^[36](2020)	√	√	√	√			√	√	√	√	7
顾琦等^[37](2020)	√	√	√	√			√	√	√	√	7
Rodgers等^[38](2019)	√	√	√	√		√	√	√	√	√	8
Ramos等^[39](2019)	√	√	√	√	√	√	√	√	√	√	9
Hsu等^[40](2019)	√	√	√	√		√	√	√	√	√	8
Dehem等^[41](2019)	√	√	√	√		√	√	√	√	√	8
张杨^[42](2019)	√	√	√	√			√	√	√	√	7
张海燕等^[43](2019)	√	√	√	√			√	√	√	√	7
翁静等^[44](2019)	√	√	√	√			√	√	√	√	7
