采用多层感知器神经网络构建亚急性期缺血性脑卒中患者短期预后的预测模型

doi:10.3969/j.issn.1006-9771.2022.03.009

《中国康复理论与实践》 ›› 2022, Vol. 28 ›› Issue (3): 335-339.doi: 10.3969/j.issn.1006-9771.2022.03.009

采用多层感知器神经网络构建亚急性期缺血性脑卒中患者短期预后的预测模型

赖海芳¹,顾琳²,纵亚¹,牛传欣¹,谢青¹()

1. 上海交通大学医学院附属瑞金医院,上海市 200025
2. 上海市瑞金康复医院,上海市200023

收稿日期:2021-10-11 修回日期:2021-11-05 出版日期:2022-03-25 发布日期:2022-03-31
通讯作者: 谢青 E-mail:ruijin_xq@163.com
作者简介:赖海芳(1991-),女,汉族,福建福鼎市人,硕士研究生,主治医师,主要研究方向：神经系统疾病的康复治疗。
基金资助:
上海市临床重点专科项目(shslczdzk02701);上海交通大学医学院附属瑞金医院(北部院区)研究基金项目No(2020ZY10)

Prediction of short-term outcome after subacute ischemic stroke using multiple layer perceptron neural network

LAI Haifang¹,GU Lin²,ZONG Ya¹,NIU Chuanxin¹,XIE Qing¹()

1. Ruijin Hospital, Shanghai Jiaotong University School of Medicine, Shanghai 200025, China
2. Shanghai Ruijin Rehabilitation Hospital, Shanghai 200023, China

Received:2021-10-11 Revised:2021-11-05 Published:2022-03-25 Online:2022-03-31
Contact: XIE Qing E-mail:ruijin_xq@163.com
Supported by:
Shanghai Municipal Key Clinical Specialty No(shslczdzk02701);Ruijin Hospital, Shanghai Jiaotong University School of Medicine (Northern Campus) Research Fund No(2020ZY10)

摘要/Abstract

摘要： 目的采用多层感知器(MLP)神经网络构建亚急性期缺血性脑卒中(CIS)短期预后的预测模型。方法 2019年1月至2021年9月,上海市瑞金康复医院康复科再住院缺血性脑卒中患者60例,采集首次住院时(病程< 30 d)的临床相关信息,根据首次入院3个月后改良Rankin量表评分,判断患者短期预后。采用单因素分析筛选与短期预后相关的危险因素,分别采用常规多因素Logistic回归和MLP建立预测模型,计算两种模型的预测准确率,采用接受者操作特征(ROC)曲线评估预测效应。结果多因素Logistic回归模型预测准确率73.3%,ROC曲线下面积0.851;MLP模型预测准确率88.9%,ROC曲线下面积0.930。结论采用MLP模型能更好预测亚急性期缺血性脑卒中的短期预后。

关键词: 缺血性脑卒中, 亚急性期, 多因素Logistic回归, 多层感知器, 神经网络, 预测, 短期结局

Abstract: Objective To establish a predictive model using multiple layer perceptron (MLP) for short-term outcome after subacute ischemic stroke.Methods From January, 2019 to September, 2021, 60 readmission-inpatients in Department of Rehabilitation, Ruijin Hospital, Shanghai Jiaotong University School of Medicine were collected the clinical features of first admission (less than 30 days after attack), and the outcomes were assessed with modified Rankin Scale (MRS) three months after the first admission. The risk factors were screened with single factor analysis, and the short-term outcome predictive models were established with multi-factor Logistic regression and MLP. The predictive accuracy of both models was calculated, and the predictive effects were compared with Receiver Operating Characteristic (ROC) curve.Results For multi-factor Logistic regression, the predictive accuracy was 73.3%, and the area under ROC curve was 0.851. For MLP, the predictive accuracy was 88.9%, and the area under the ROC curve was 0.930.Conclusion The prediction of short-term outcome after subacute ischemic stroke can be done with MLP model.

Key words: ischemic stroke, subacute, multi-factor Logistic regression, multiple layer perceptron, neural network, prediction, short-term outcome

赖海芳,顾琳,纵亚,牛传欣,谢青. 采用多层感知器神经网络构建亚急性期缺血性脑卒中患者短期预后的预测模型[J]. 《中国康复理论与实践》, 2022, 28(3): 335-339.

LAI Haifang,GU Lin,ZONG Ya,NIU Chuanxin,XIE Qing. Prediction of short-term outcome after subacute ischemic stroke using multiple layer perceptron neural network[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2022, 28(3): 335-339.

图/表 7

表1

表2

表3

表4

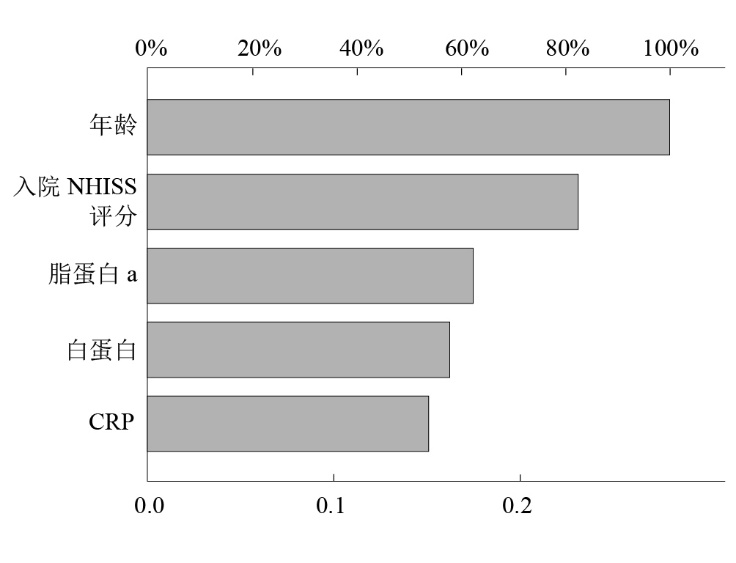

图1

表5

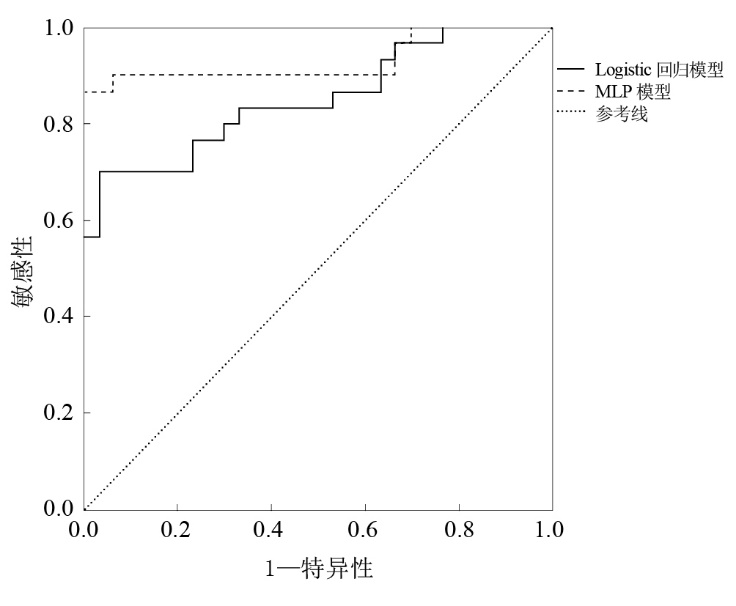

图2

参考文献 25

[1]	WANG W Z, JIANG B, SUN H X, et al. Prevalence, incidence, and mortality of stroke in China: results from a nationwide population-based survey of 480687 adults[J]. Circulation, 2017,135(8):759-771.
[2]	D'AMORE C, PACIARONI M, SILVESTRELLI G, et al. Severity of acute intracerebral haemorrhage, elderly age and atrial fibrillation: independent predictors of poor outcome at three months[J]. Eur J Intern Med, 2013,24(4):310-313.
[3]	SEO W K, SEOK H Y, KIM J H, et al. C-reactive protein is a predictor of early neurologic deterioration in acute ischemic stroke[J]. J Stroke Cerebrovasc Dis, 2012,21(3):181-186.
[4]	KUNICKI T J, WILLIAMS S A, NUGENT D J, et al. Mean platelet volume and integrin alleles correlate with levels of inte-grins alpha (IIb) beta (3) and alpha (2) beta (1) in acute coronary syndrome patients and normal subjects[J]. Arterioscler Thromb Vasc Biol, 2012,32(1):147-152.
[5]	宋祖玲, 刁莎, 严兰平, 等. 联合决策树及Logistic回归建立乳腺癌相对风险预测模型[J]. 现代预防医学, 2019,46(7):1156-1175.
	SONG Z L, DIAO S, YAN L P, et al. Prediction model of relative risk for breast cancer based on decision tree and Logistic regression[J]. Moder Prev Med, 2019,46(7):1156-1175.
[6]	TU J V. Advantages and disadvantages of using artificial neural networks versus logistic regression for predicting medical outcomes[J]. J Clin Epidemiol, 1996,49(11):1225-1231.
[7]	RENGANATHAN V. Overview of artificial neural network models in the biomedical domain[J]. Bratisl Lek Listy, 2019,120(7):536-540.
[8]	郑广勇, 蔡剑. 多层感知器神经网络在手足口病预测模型中的应用[J]. 中国公共卫生管理, 2020,36(1):67-73.
	ZHENG G Y, CAI J. Application of multi-layer perceptron neural network in the prediction model of hand-foot-mouth disease[J]. Chin J PHM, 2020,36(1):67-73.
[9]	LAU K W K, MAK M K Y. Speed-dependent treadmill training is effective to improve gait and balance performance in patients with subacute stroke[J]. J Rehabil Med, 2011,43(8):709-713.
[10]	王冬燕, 吕航. 神经网络方法在医学统计预测中的应用[J]. 南京中医药大学学报(社会科学版), 2017,18(1):47-52.
	WANG D Y, LÜ H. Application of neural network method to medical statistics forecast[J]. J Nanjing Univ Tradi Chin Med (Soc Sci), 2017,18(1):47-52.
[11]	KEIDAR D, YARON D, GOLDSTEIN E, et al. COVID-19 classification of X-ray images using deep neural networks[J]. Eur Radiol, 2021,31(12):9654-9663.
[12]	CHETHAM S M, BARKERT M, STAFFORD W. Neural networks in cardiac electrophysiological signal classification[J]. Australas Phys Eng Sci Med, 2002,25(3):124-131.
[13]	LING T S, WU L L, FU Y W, et al. A deep learning-based system for identifying differentiation status and delineating the margins of early gastric cancer in magnifying narrow-band imaging endoscopy[J]. Endoscopy, 2021,53(5):469-477.
[14]	KNOFLACH M, MATOSEVIC B, RÜCKER M, et al. Functional recovery after ischemic stroke: a matter of age: data from the Austrian Stroke Unit Registry[J]. Neurology, 2012,78(4):279-285.
[15]	KUGLER C, ALTENHONER T, LOCHNER P, et al. Hessian Stroke Data Bank Study Group ASH. Does age influence early recovery from ischemic stroke? A study from the Hessian Stroke Data Bank[J]. J Neurol, 2003,250(6):676-681.
[16]	CHALOS V, VAN DER ENDE N A M, LINGSMA H F, et al. National Institutes of Health Stroke Scale: an alternative primary outcome measure for trials of acute treatment for ischemic stroke[J]. Stroke, 2020,51(1):282-290.
[17]	AHMED R, ZUBERI B F, AFSAR S. Stroke scale score and early prediction of outcome after stroke[J]. J Coll Physicians Surg Pak, 2004,14(5):267-269.
[18]	RAWTHER T, TABET F. Biology, pathophysiology and current therapies that affect lipoprotein(a) levels[J]. J Mol Cell Cardiol, 2019,131:1-11.
[19]	GENCER B, KRONENBERG F, STROES E S, et al. Lipoprotein(a): the revenant[J]. Eur Heart J, 2017,38(20):1553-1560.
[20]	ERQOU S, KAPTOGE S, PERRY P L, et al. Lipoprotein(a) concentration and the risk of coronary heart disease, stroke, and nonvascular mortality[J]. JAMA, 2009,302:412-423.
[21]	FORBES C A, QUEK R G, DESHPANDE S, et al. The relationship between Lp (a) and CVD outcomes: a systematic review[J]. Lipids Health Dis, 2016,15:95.
[22]	ZHANG W, ZHANGX A. Prognostic value of serum lipoprotein (a) levels in patients with acute ischemic stroke[J]. Neuroreport, 2014,25(4):262-266.
[23]	FARAJI F, GHASAMI K, TALAIE-ZANJANI A, et al. Prognostic factors in acute stroke, regarding to stroke severity by Canadian Neurological Stroke Scale: a hospital-based study[J]. Asian J Neurosurg, 2013,8(2):78-82.
[24]	WORTHMANN H, TRYC A B, GOLDBECKER A, et al. The temporal profile of inflammatory markers and mediators in blood after acute ischemic stroke differs depending on stroke outcome[J]. Cerebrovas Dis, 2010,30(1):85-92.
[25]	WANG A X, TIAN X, ZUO Y T, et al. High lactate dehydrogenase was associated withadverse outcomes in patients with acute ischemic stroke or transient ischemic attack[J]. Ann Palliat Med, 2021,10(10):10185-10195.

特征变量	数值
总数/n	60
性别(男/女)/n	36/24
年龄/岁	67.3±10.3
高血压病/n	48
糖尿病/n	25
吸烟史/n	13
饮酒史/n	10
CRP/mg·L^-1	11.5±14.3
白蛋白/g·L^-1	34.1±3.4
空腹血糖/mmol·L^-1	6.1±1.8
脂蛋白a/mg·L^-1	24.8±32.2
D-D聚体/mg·L^-1	0.5±0.8
B型钠尿肽/pg·mL^-1	257.7±437.7
入院NHISS评分	7.5±4.6

因变量	n	预后良好数	χ²值	P值
性别			1.111	0.292
男	36	16
女	24	14
高血压史			1.667	0.197
有	48	22
无	12	8
糖尿病史			0.069	0.793
有	25	12
无	35	18
吸烟史			0.884	0.347
有	13	5
无	47	25
饮酒史			0.218	0.640
有	10	4
无	50	26

特征变量	预后良好 (n = 30)	预后不良 (n = 30)	F值	P值
年龄/岁	63.53±10.94	71.13±9.37	8.35	0.005
CRP/mg·L^-1	7.43±2.22	15.57±19.35	5.23	0.026
白蛋白/g·L^-1	34.98±3.17	33.25±3.40	4.16	0.046
空腹血糖/mmol·L^-1	6.33±1.91	5.90±1.67	0.86	0.358
脂蛋白a/mg·L^-1	15.12±15.74	34.61±40.82	5.97	0.018
入院NHISS评分	5.57±2.76	9.43±5.30	12.55	0.001
D-D聚体/mg·L^-1	0.31±0.45	0.64±0.97	2.81	0.099
B型钠尿肽/pg·mL^-1	266.32±215.04	145.17±155.35	2.23	0.123

自变量	B	S	P值	OR	95%CI
年龄	0.086	0.040	0.031	1.090	1.008~1.178
CRP	0.112	0.082	0.172	1.118	0.953~1.313
白蛋白	-0.030	0.112	0.787	0.970	0.779~1.208
脂蛋白a	0.028	0.017	0.096	1.029	0.995~1.064
入院NHISS评分	0.205	0.091	0.024	1.228	1.027~1.467
常量	-8.989	3.044	0.003	0.000

模型		良好/n	不良/n	准确率/%
Logistic回归
良好		23	7	76.7
不良		9	21	70.0
合计				73.3
MLP
训练	良好	23	0	100.0
	不良	2	17	89.5
	合计			95.2
检验	良好	7	0	100.0
	不良	2	9	81.8
	合计			88.9
